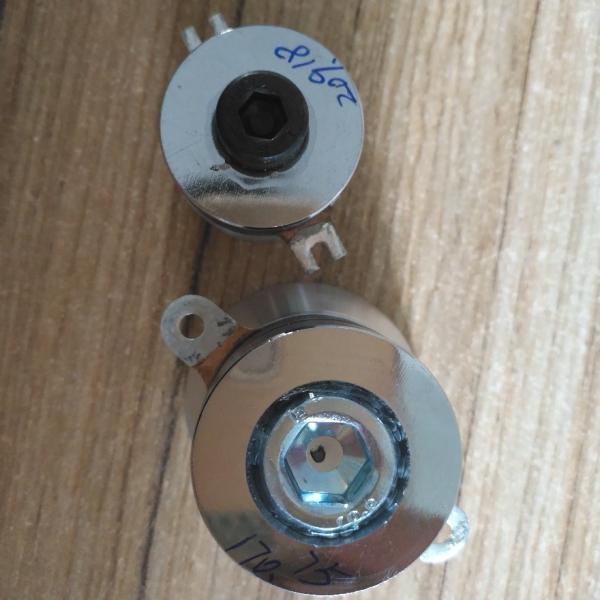

High Frequency 200K 170K Piezoelectric Ultrasonic Transducer 30W

Name: High Frequency 200K 170K Piezoelectric Ultrasonic Transducer 30W
Brand: CCWY
Price: 1 USD

Brand Name : CCWY

Model Number : CCWY

Certification : CE ROSH TUV

Place of Origin : CN

MOQ : 1PCS

Payment Terms : T/T

Supply Ability : 20.000.000 PER MONTH

Delivery Time : On stock

Packaging Details : CARTON

Item : CCH-3130D-200LB P4

Length(mm) : 42

Weight(g) : 126

Frequency(KHZ) : 200K

Resonance Impedance : <50

Input Power(w) : 30

Contact Now

200K 170K High Frequency Piezoelectric Ultrasonic Cleaner Transducer

Quick Detail

Transducer, also known as vibrator, is a device that converts the electrical energy and mechanical energy (sound wave vibration) by the piezoelectric effect of piezoelectric ceramics and amplifies the acoustic impedance matching front and rear radiation cover blocks.
Ultrasonic cleaning ultrasonic vibration generated by the transducer, cavitation occurs in the water generated by the instantaneous impact of high-pressure foam was washed to achieve a good cleaning effect.
Ultrasonic cleaning transducers generally use the horn-type composite matrix structure (which is Lan Jie Wenzizhu structure), which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressed screw, electrode sheet, and insulating sleeve. Apply appropriate prestress, the transducer in high-power, high-amplitude conditions have good electromechanical conversion efficiency.
Ultrasonic cleaning transducer is a continuous work of the power transducer, generally the average continuous operation to calculate the constant and its power size.

Description

ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

High Frequency 200K 170K Piezoelectric Ultrasonic Transducer 30W

Specifications

ultrasonic cleaning transducer:

Type	Length (mm)	Weigh (g)	Frequency (KHz)	Resonance Impedance (Ω)	Static Capacity (pF)±10%	Input Power (W)
CCH-3130D-200LB pzt-4	42	126	200	<50	3200	30

Type	Length(mm)	Weight (g)	Frequency(KHz)±4%	Resonance Impedance (Ω)	Static Capacity (pF)±10%	Input Power(W)
CCH-5839D-25/50LB PZT-4	80	540	25/50	<35	4900	40
CCH-4039D-80/38ZB PZT-4	61	330	38/80	<35	4800	40
CCH-4039D-100/40ZB PZT-4	54	280	40/100	<35	3200	40
CCH-5839D-25/50/80 PZT-4	80	540	25/50/80	<40	5000	35
CCH-4039D-100/73/40 PZT-4	56	260	40/73/120	<40	5100	35
CCH-4039D-120/80/40 PZT-4	56	260	40/80/120	<40	5100	35
CCH-5839D-25/50/80/120 PZT-4	80	540	25/50/80/120	<45	5200	30
CCH-4039D-120/170/80/40 PZT-4	56	260	40/80/120/170	<45	5400	30
